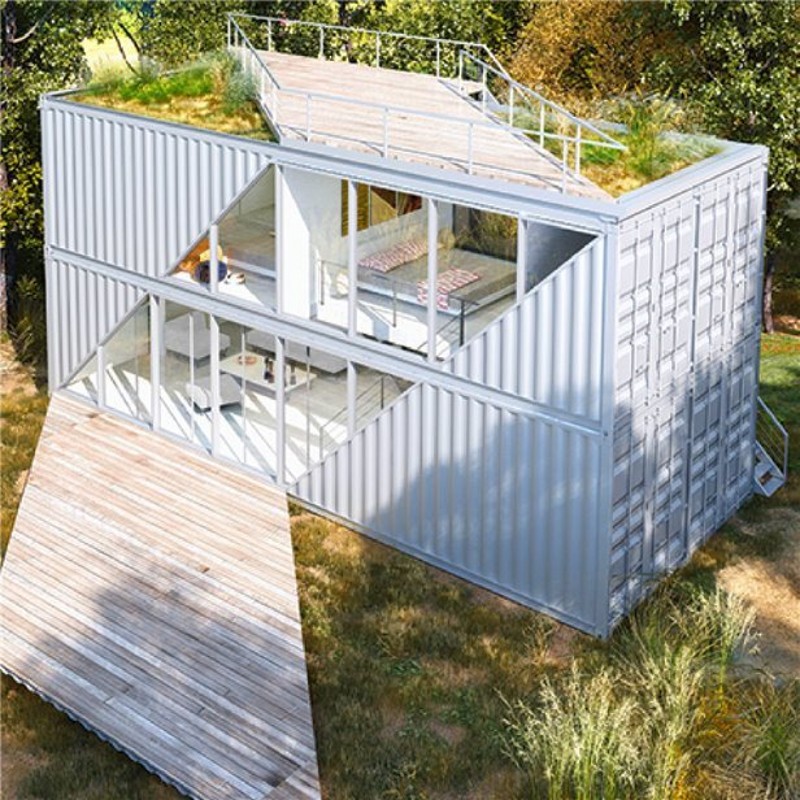

2 Story Prefabricated Modular Mobile Housing Living Container
Houses
Container homes is a standard mobile house. Solid structure makes
this house resist up to 120KM/H wind speed. Flat packing and
loading into 40 foot containers when shipping makes goods safe and
easy to transport and lay in at local site.
With the character of free moving and fast installation, Modular
house is highly favorite by construction companies, mining
companies, road & bridge companies all over the world.
| Container Size | 20ft,40ft,40HQ |
| Color | Optional |
| Loading | Can be shipping as ISO container |
| Structure | Steel base: Q235, hot galvanized. 2mm power coated steel as main
beam and 1.5mm steel as second beam |
| Column: 3mm steel, Q235, hot galvanized, power coated |
| Steel corner with hole: Q235, hot galvanized, power coated |
| Roof system: Q235, hot galvanized. 3mm power coated steel as main
beam and 1.5 mm steel as second beam. |
| Wall panel | 50mm Glass wool sandwich panel/EPS |
| Roof | color steel sheet as roof sheet+40mm glass wool insulation+ ceiling |
| Floor | 16mm MgO Panel, with 2mm vinly sheet |
| Window | Alu Sliding window |
| Size:as requested |
| Door | Steel door, with handle lock and keys. |
| External size:as requested |
| Electrical system | 1 electrical distribution, 2 industrial plug, 2 lights, 2 switches,
3 sockets (with A/C socket), electrical wire (220V/50Hz) |
| Temperature | suitable temperature.-50°C~+50°C |
| Others | Furniture and appliance are customized-made to your requirements(additional cost) |
| Floor load | 0.5KN/square meter |
| Roof load | 1.5KN/square meter |
| Wind resistance | Grade 11(wind speed≤111.5km/h) |
Detail Images
Sussman Service:
1. The house is made of light steel structure and rustproof color
steel sandwich panel as wall and roof;
2. The size and layout can be designed as per customers'
requirements for its flexible dimension;
3. The house has waterproof structure and heating insulation
material, such as EPS, Rock wool or PU Panels interlock easily to
form a complete thermally efficient shell;
4. Two kinds of flooring system are available, one is steel chassis
floor, the other is concrete foundation;
5. One 40'HQ container can load about 160m2 considering 75mm
thickness panel for roof and wall;
6. The house can resist heavy wind load of 0.5KN/m2 and 7-8 degree
seismic intensity.
